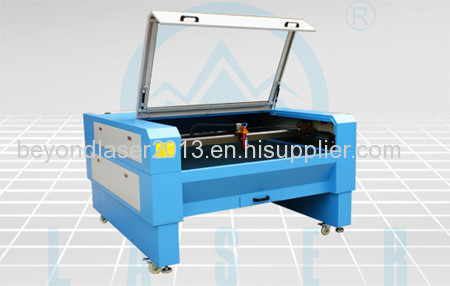

Specialized acrylic/wood laser cutting machine HS-Z1390

Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HS-Z1390

Production Capacity: 300sets/month

Delivery Date: 5 to 30 days depending on d...

Brand Name: HSG laser

Means of Transport: Ocean

Packing: Seaworthy wooden cases with...

Application: Laser Cutting

Processing Area: 1300mm*900mm

Specialized acrylic/wood laser cutting machine HS-Z1390 is the best-seller for signs industry/ acrylic, plywood, MDF, plastic cutting.

Product description:

1. Specialized acrylic/wood laser cutting machine HS-Z1390 is the best-seller for signs industry/ acrylic, plywood, MDF, plastic cutting. 3000 sets of this model stably working all over the world.

2. Applicable industries and materials: advertising industries, acrylic, plywood, MDF and other non-metal materials.

3. HS-Z1390 specialized acrylic/wood laser cutting machine features:

(1) Chinese No. 1 belt acrylic laser cutting machine with highest precision and best cutting quality.

(2)This acrylic laser cutting machine can keep cutting 25mm thick acrylic for a long time with smooth edges and no sawtooth.

(3) This acrylic laser cutting machine can fast cut 2mm small circles without deformation.

(4) 10-year experience in acrylic cutting technology developing field.

(5)Unique guide rail testing technology, strict guide rails pre-tightening force testing standards, installation testing by collimator, ensure perfect cutting effect on acrylic.

(6)Max cutting thickness (135W): 25mm acrylic, 15mm plywood and 12mm MDF.

(7)Optional: two focusing lenses, one fen: 100mm lens for thick materials, another one Fn: 63.5mm lens for strongly cutting thin materials.

(8)Special function: machine starts at the same point in event of a power loss, prevent waste of expensive acrylic.

(9)Strong knife-strip work table.

4.Technical parameters of HS-Z1390 specialized acrylic/wood laser cutting machine:

Technicalparameters
1	ProcessingArea	1300mm*900mm
2	Max.Cutting Speed	36m/min
3	Engravingspeed	0-64m/min
4	Locationprecision	±0.05mm
5	Weight	300KG
6	LaserPower	60W-150W
7	Max.Acceleration Speed	1G
8	GraphicFile Formats Supported	BMPJPG PLT DSB AI DXF DST
9	Applied Materials	acrylic,plywood, MDF and other non-metal materials

About HSG laser:
HSG laser is the best laser cutting bed manufacture in China and HSG laser also is the number hot-sale laser cutting bed producer in China.

HSG laser advantages:
1.HSG laser is the only one manufacturer carrying out 100% testing in the whole Chinese laser industry.
2.HSG laser is the only one Chinese supplier provides 3 years guarantee for the machine in China.

Company certificates:
CE certificate.

ISO certificate.

FDA certificate.
