Specifications
1.600 High Temperature Annealing 2.cuttingacrylic,LED and LGP,MDF,plywood 3.laser cut screensProductDescription
Productpicture
Technical specification

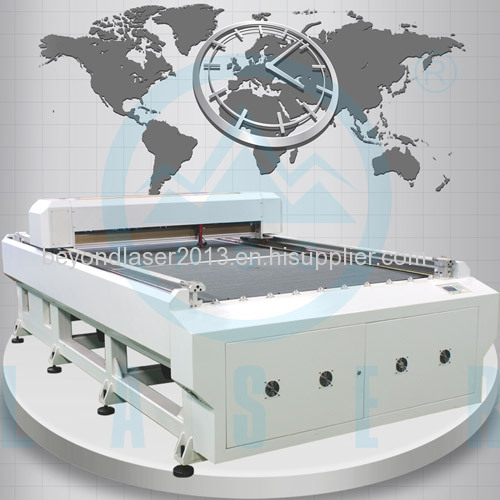

Product name | Hotsale machine for laser cut screens HS-B1325 |
Work size(mm) | 1300×2500 |
Power | 135W |
Volume m3) | 13 |
Weight(kg) | 1000kg |
Exterior dimension(mm) | 3470*1892*1178 |
Wooden casedimension(mm) | 3570*1970*1178 |
Transmission model | Steel belt is fixed, the geartransmission |
The max free speed | 48m/min |
Reprecision | ±0.01mm |
Working power supply | AC220V±10% 50HZ |
PositionaI accuracy | 0.02mm |
Total power | ≤ 1800W |
Temperature | 0°C-40°C |
Humidity | 5-95% |
Formats | DXF,AI,PLT,CDR,BMP,PLT,DST |
Applied Materials | Apply to cut acrylic, LED lightpanels, MDF fiber board, composite board, advertising decoration materials,electrical panel such as cutting, designed for high precision cutting of theuser |
Optional Equipment | Rotary attachment |
Motorized up-downtable | |
Industry chiller CW-3000 /CW-5000 | |
Honeycomb Table | |
Fume ExtractorHEPA | |
Yaskawa servo drive andmotor |
Why choose HSG Laser?
1.A variety ofchoices | |
HSG laser cutting machines can be customised for your specific industrial or educationalapplications and our machines can easily be adjusted for a wide range ofmaterials.We have developed laser machines of eight series and more than 60models and have reached year's production capacity of more than 2000sets. | |
2.Customizedservice | |
HSG laser provide customized service including:a.Technical service b.Applicationconsulting right from the start c.Training from our engineer d. 1-year warrantyand no express fee | |
3.Excellentquality | |
a.The only one manufacturer carrying out 100% testing in the whole Chinese laser industry toensure high degree of accuracy. | |
b.Safe and clean:Upgrade hand-held terminal control system and optional ventilationinstallation to ensure more user-friendly operation and more flexible controlmode. | |
c.Skillful team:we have the engineer from China's first laser cutting machine research and development team.Also have experienced management team served this market formore than 10 years. |
